Layered acoustic construction
Sound-insulating and sound-absorbing materials work together across the enclosure to support speech privacy and interior comfort.
L / 4 People

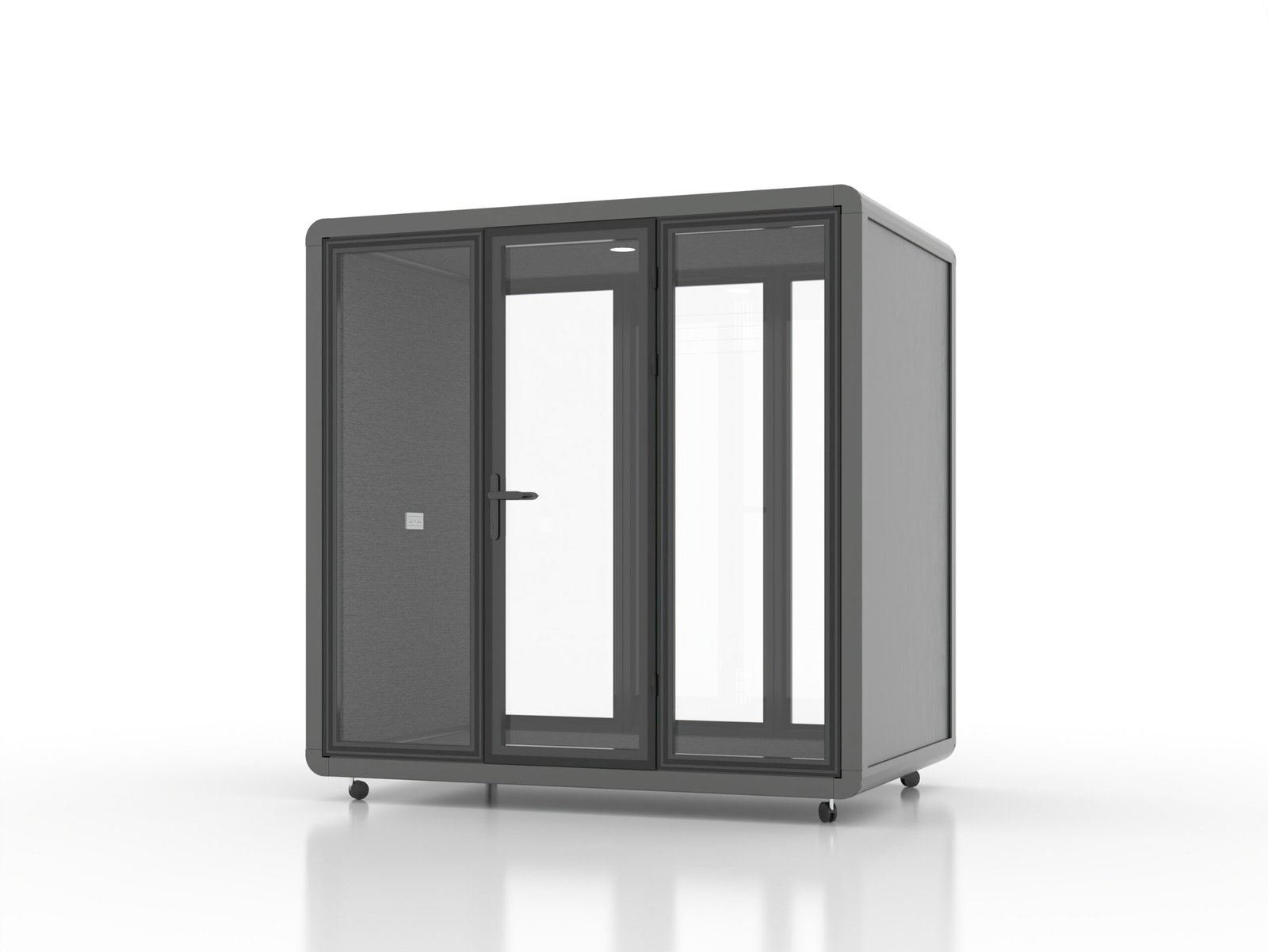

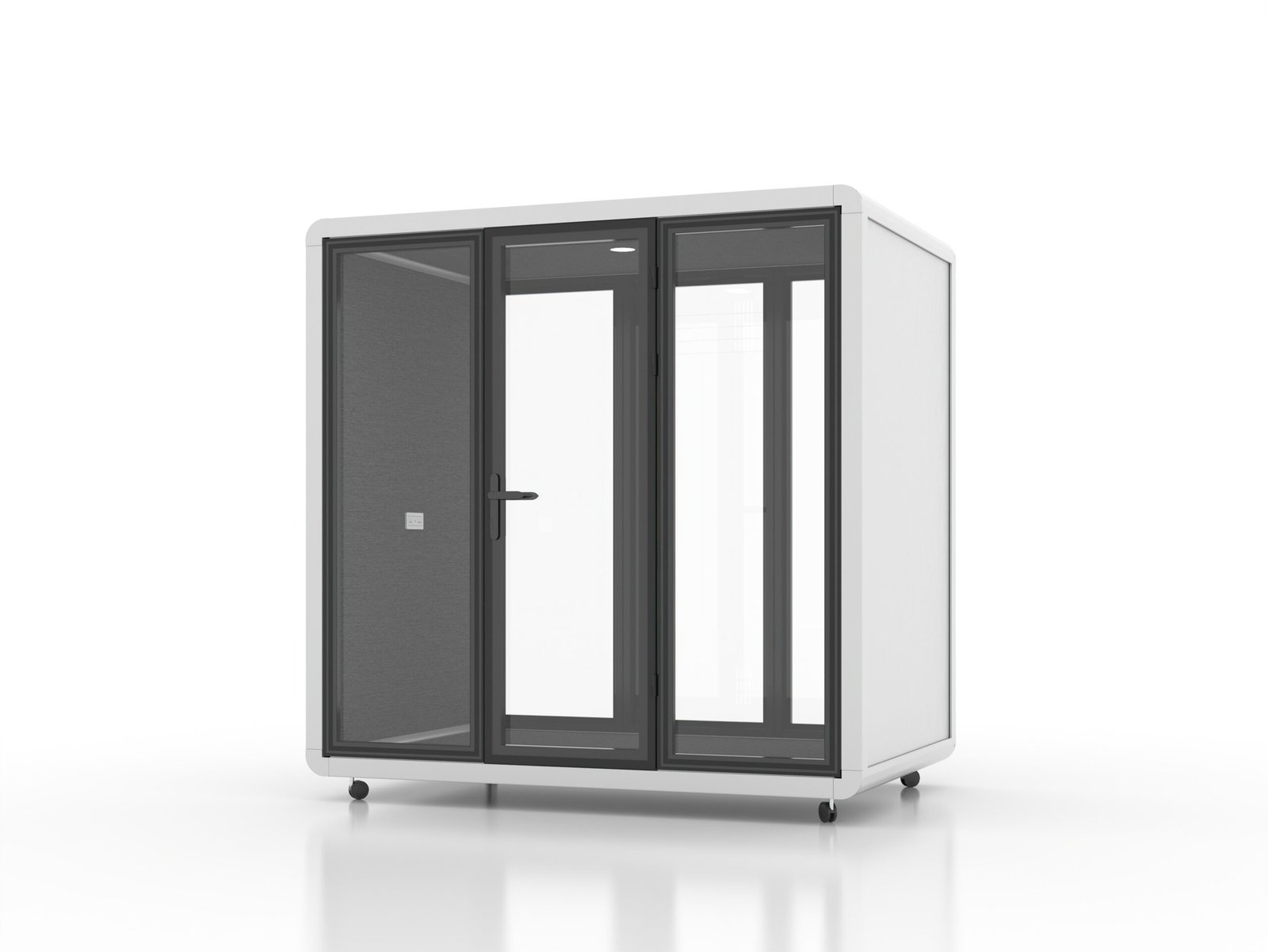

L — Four Person Acoustic Phone Booth
A four-person acoustic meeting room for focused collaboration, interviews and shared workplace discussions.
4 PeopleCapacity
W2200 × D1600 × H2300 mmExternal dimensions
Product Overview
A practical room for small-team collaboration.
L creates an enclosed four-person meeting setting within open offices and shared environments. It supports focused discussions and collaborative work without introducing a permanent room build.
A self-contained meeting room planned for four-person workplace use.
H2300 mmW2200 mmD1600 mm
Capacity + Dimensions
Sized for four.
The L model provides an enclosed four-person setting for collaborative work, interviews and focused small-team conversations.
4Person
capacity
capacity
| Width | 2200 mm |
|---|---|
| Depth | 1600 mm |
| Height | 2300 mm |
Acoustic Design
An enclosed interior, built around acoustic comfort.
The L model combines sound-insulating and sound-absorbing materials to support focused conversations within the enclosed room.
Interior acoustic surfaces
Sound-absorbing interior materials help create a calmer environment for meetings and collaborative work.
Clear glazed access
Glazed access maintains visual connection with the workplace while supporting the enclosed acoustic environment.
Interior Systems
Air, light and power—integrated into the room.
Ventilation, lighting and power are coordinated within the L model for its intended workplace use.
| System | Configuration | Project reference |
|---|---|---|
| 01Ventilation | Low-noise mechanical ventilation supports managed air movement inside the enclosed room. | Managed airflowLow-noise operation Configuration confirmed for each project |
| 02Lighting | Integrated LED lighting supports a clear and comfortable setting for meetings and collaborative work. | Integrated ceiling lightInterior illumination Light specification confirmed for each project |
| 03Power | Power and charging are configured for the destination market and the approved project requirements. | Outlet format by marketCharging options by project Electrical setup confirmed before order |
Interior + Exterior Configuration
One room, coordinated to the space.
Exterior and interior colours are selected as a project pair. Furniture and placement are reviewed separately for the intended use of the L model.
Colour options
Coordinate the cabin exterior and acoustic interior with the surrounding workplace palette.
Interior furniture
Furniture is not included and can be supplied at extra cost to suit the intended use.
Placement
Access, floor conditions and final placement are reviewed with the project before order confirmation.
Modular Assembly
Prepared as modules. Planned for installation.
Coordinated wall, ceiling and access elements support efficient installation, future disassembly and reuse across changing workplace requirements.
Coordinated elements
The enclosure is prepared as coordinated elements for delivery and on-site installation.
Efficient installation
The modular approach supports an organised assembly sequence for the approved project setting.
Workplace adaptability
Modular delivery supports future disassembly and reuse when workplace requirements change.
Technical Information
Product information, organised for faster review.
Four clear chapters bring product, interior, systems and project requirements into one reference.

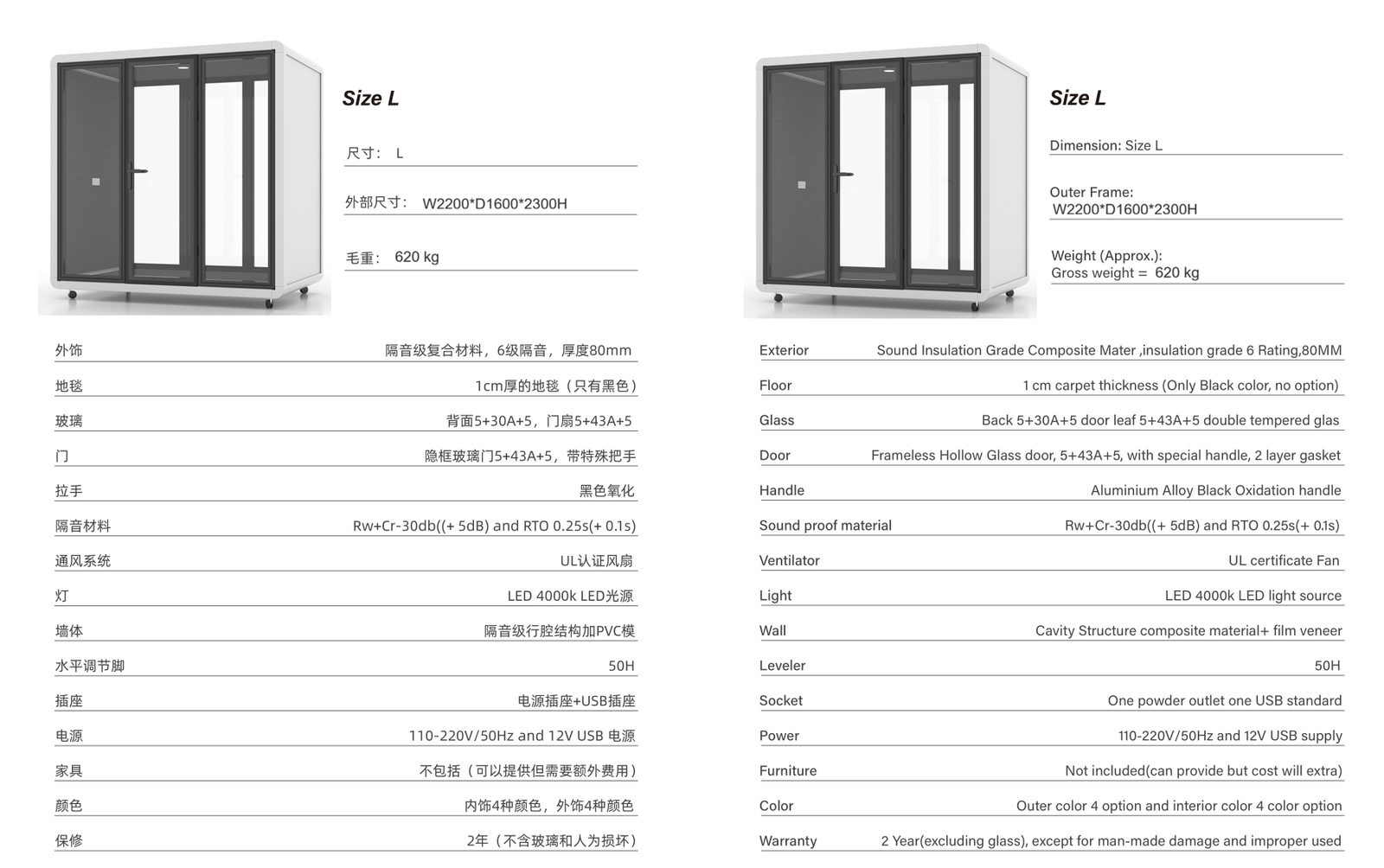

01 / Product + Structure
Capacity and structural reference
| Capacity | 4 People |
|---|---|
| External dimensions | W2200 × D1600 × H2300 mm |
| Acoustic construction | Layered sound-insulating and sound-absorbing materials support the enclosed acoustic environment. |
| Exterior shell | Durable coated exterior panels are coordinated with the selected project colour. |
02 / Interior + Access
Interior surfaces and access
| Glazing | Clear acoustic glazing supports visibility and the enclosed room environment. |
|---|---|
| Access system | Glazed access is coordinated with the enclosure; final project details are confirmed before order. |
| Interior surfaces | Sound-absorbing interior materials support acoustic comfort during use. |
| Flooring | Durable interior flooring is selected for workplace use. |
03 / Air + Light + Power
Integrated interior systems
| Ventilation | Low-noise mechanical ventilation supports managed air movement inside the room. |
|---|---|
| Lighting | Integrated LED lighting supports meetings and collaborative work. |
| Power | Power configuration is prepared for the destination market and approved order requirements. |
| Charging | Charging options are confirmed with the project specification before order. |
04 / Project + Use
Delivery, configuration and workplace planning
| Modular delivery | Coordinated modules support organised transport and on-site installation. |
|---|---|
| Colour selection | Exterior and interior colours are selected as a coordinated project pair. |
| Site placement | Access, floor conditions and final position are reviewed before order confirmation. |
| Project confirmation | Furniture, electrical details and site requirements are confirmed in the quotation process. |
Packing + Delivery
Packing and logistics information.
L packing data is provided for project planning. Final packing and loading arrangements are confirmed with the quotation and order.
Package count1
Packing size2150 × 1220 × 1070 mm
CBM2.80661 m³
Net weight597 kg
20FT9 units
40HQ27 units
Container quantities are planning references. Final order quantities, packing and loading plans are confirmed for each project.
Phone Booth Product Line
One system. Multiple ways to work.
From individual calls to six-person collaboration, S, M, L and XL bring one consistent booth language into the wider workplace.
