Measured acoustic design
Design values: Rw + Ctr 30 dB (±5 dB), RT 0.25 s (±0.1 s) and sound insulation rating NIC = 33.
S / 1 Person

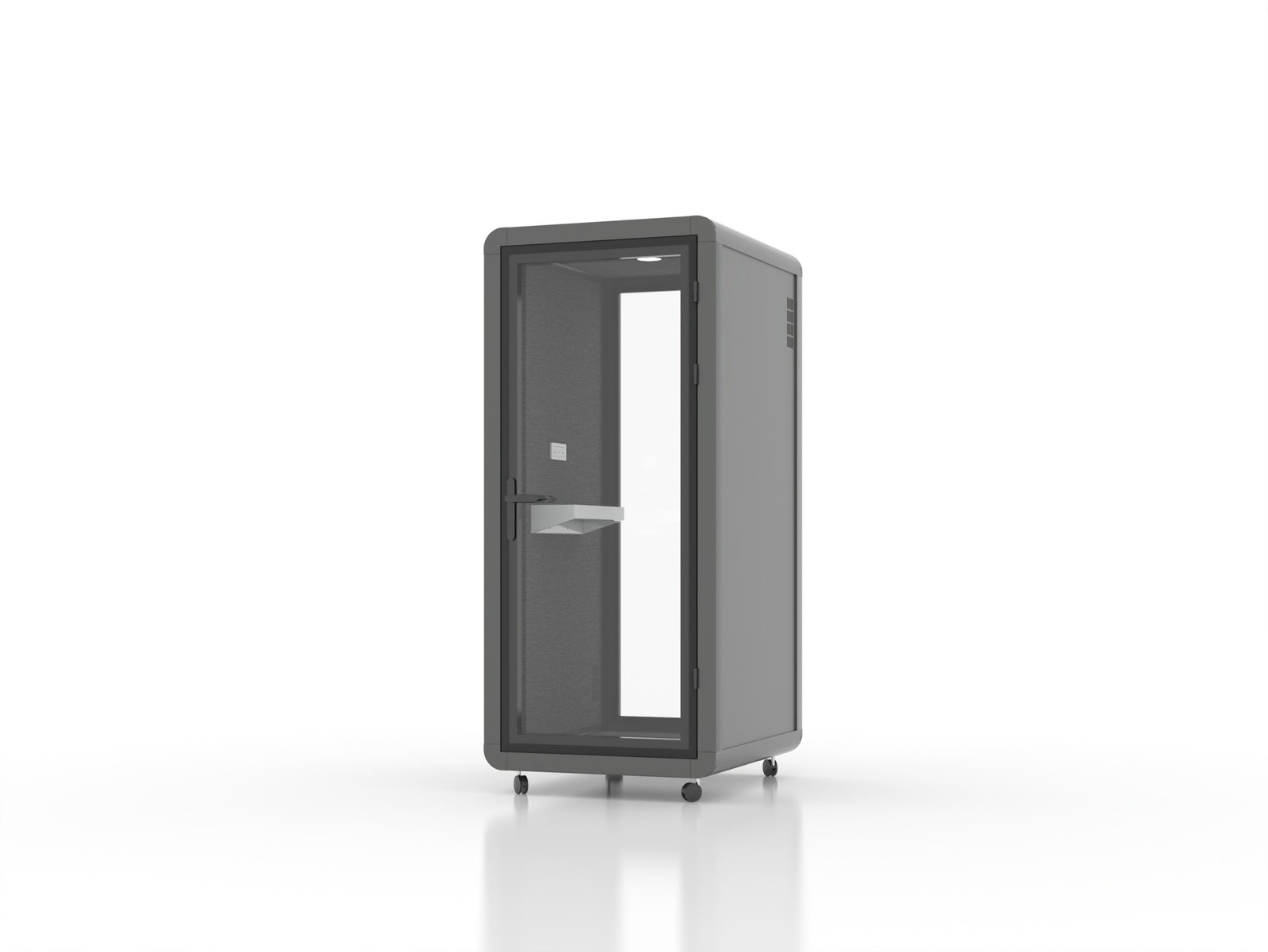

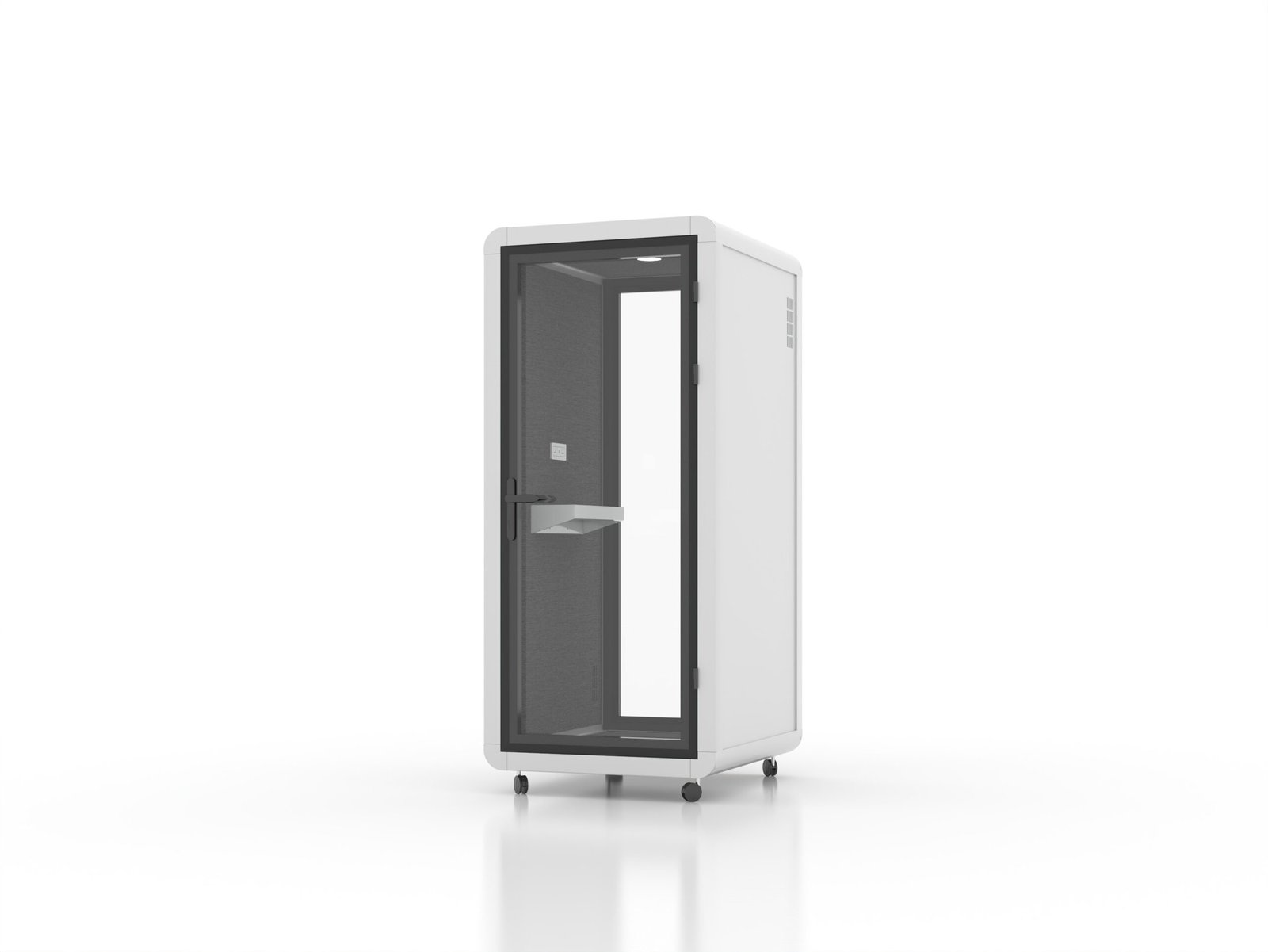

S Single Person Acoustic Phone Booth
A compact private acoustic workspace for individual calls, focused work and everyday workplace integration.
1 PersonCapacity
W1000 × D1200 × H2300 mmExternal dimensions
Product Overview

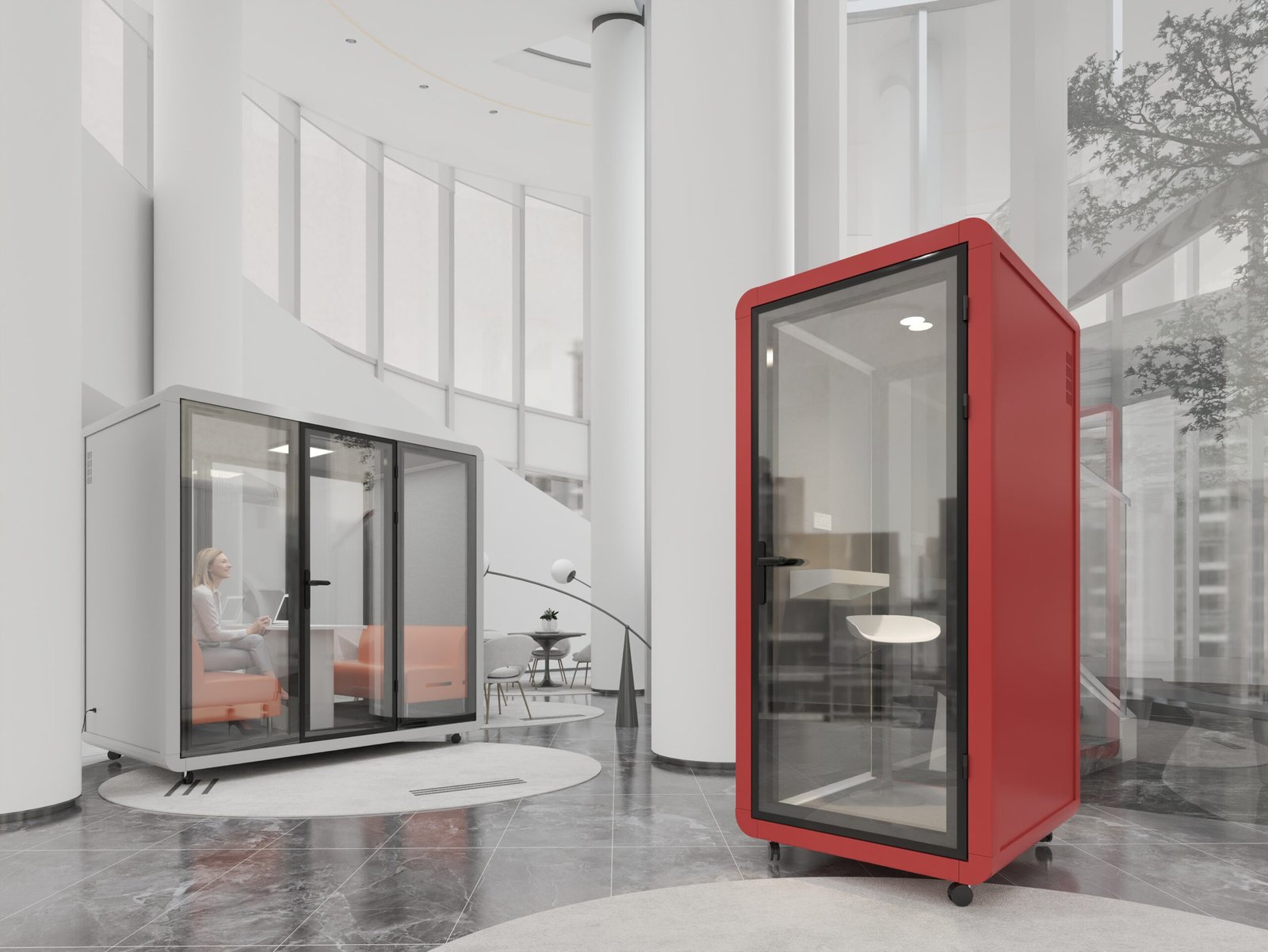

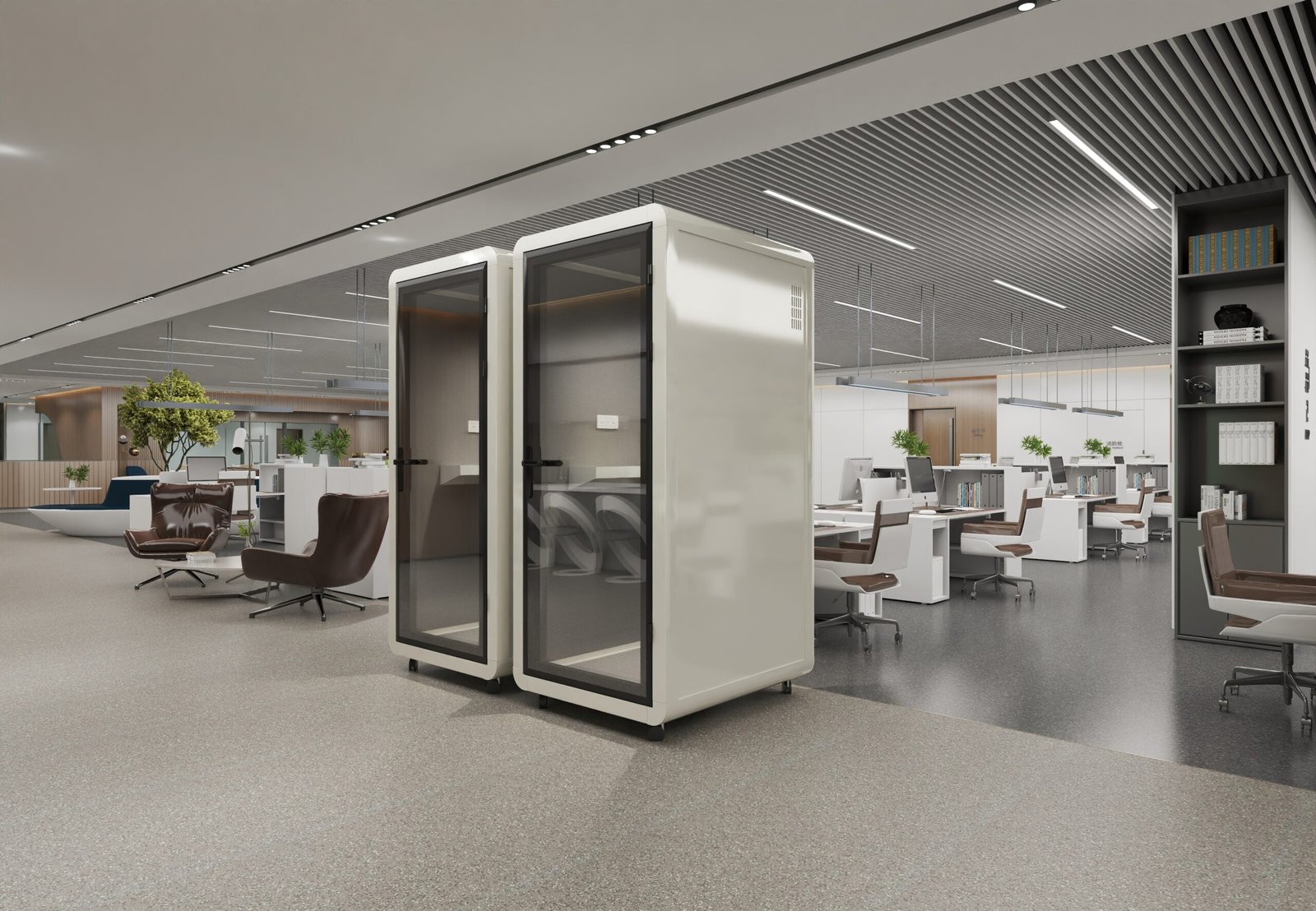

A private room within the working floor.
S brings an enclosed, single-user workspace into open offices and shared environments. Its compact footprint supports calls and individual focus without introducing a permanent room build.
Designed as a self-contained workplace element for individual use.
H2300 mm
W1000 mm
D1200 mm
Capacity + Dimensions
Sized for one.
The S model is the most compact booth in the Phone Booth Product Line, planned around one user and a clear individual workspace.
1Person
capacity
capacity
| Width | 1000 mm |
|---|---|
| Depth | 1200 mm |
| Height | 2300 mm |
Acoustic Design
An enclosed interior, built around acoustic comfort.
The S specification combines sound insulation, sound absorption and cavity-structured materials for full-frequency acoustic control across the enclosed interior.
Six-layer acoustic body
The 53 mm interior body combines a sound-insulation cavity with high-polymer composite acoustic panels.
Insulated acoustic glass
5 mm + 25A + 5 mm insulated clear acoustic glass is specified with CCC / 3C safety compliance.
Interior Systems
Air, light and power—integrated into the booth.
A clear system-by-system reference for ventilation, lighting and integrated power inside the S booth.
| System | Configuration | Key data |
|---|---|---|
| 01Ventilation | CE-certified low-noise fan with DC 12V / 1A input for managed air movement inside the enclosed booth. |
116.6 CFM22.13 dB(A)1050 RPM
Optional sensor cycle · 5 minutes every 30 minutes
|
| 02Lighting | Integrated LED lighting with high-efficiency chips and optical design for a clear individual workspace. | 6000K80–110 lm/W |
| 03Power | 3C universal socket module supporting standard power and everyday device charging. | 3-pin universalUSB + Type-C110–220V / 50Hz |
Interior + Exterior Configuration
One booth, coordinated to the space.
Exterior and interior colours are selected as a project pair. Furniture and placement are reviewed separately, keeping the S configuration clear.
Colour options
Coordinate the cabin exterior and acoustic interior with the surrounding workplace palette.
Interior furniture
Furniture is not included and can be supplied at extra cost to suit the intended use.
Placement + levelling
Heavy-duty casters support repositioning, with the specified 50H leveler configuration at the base.
Modular Assembly
Prepared as modules. Planned for installation.
Standardised wall, ceiling and door modules support modular disassembly, quick assembly, reusability and future configuration around different space requirements.
Standardised elements
Wall, ceiling and door modules can be separated into independent standardised units.
Quick installation
The modular concept is designed for efficient assembly, disassembly and repeated use.
Project scalability
A standard modular base supports expanded configurations for different spatial and acoustic needs.

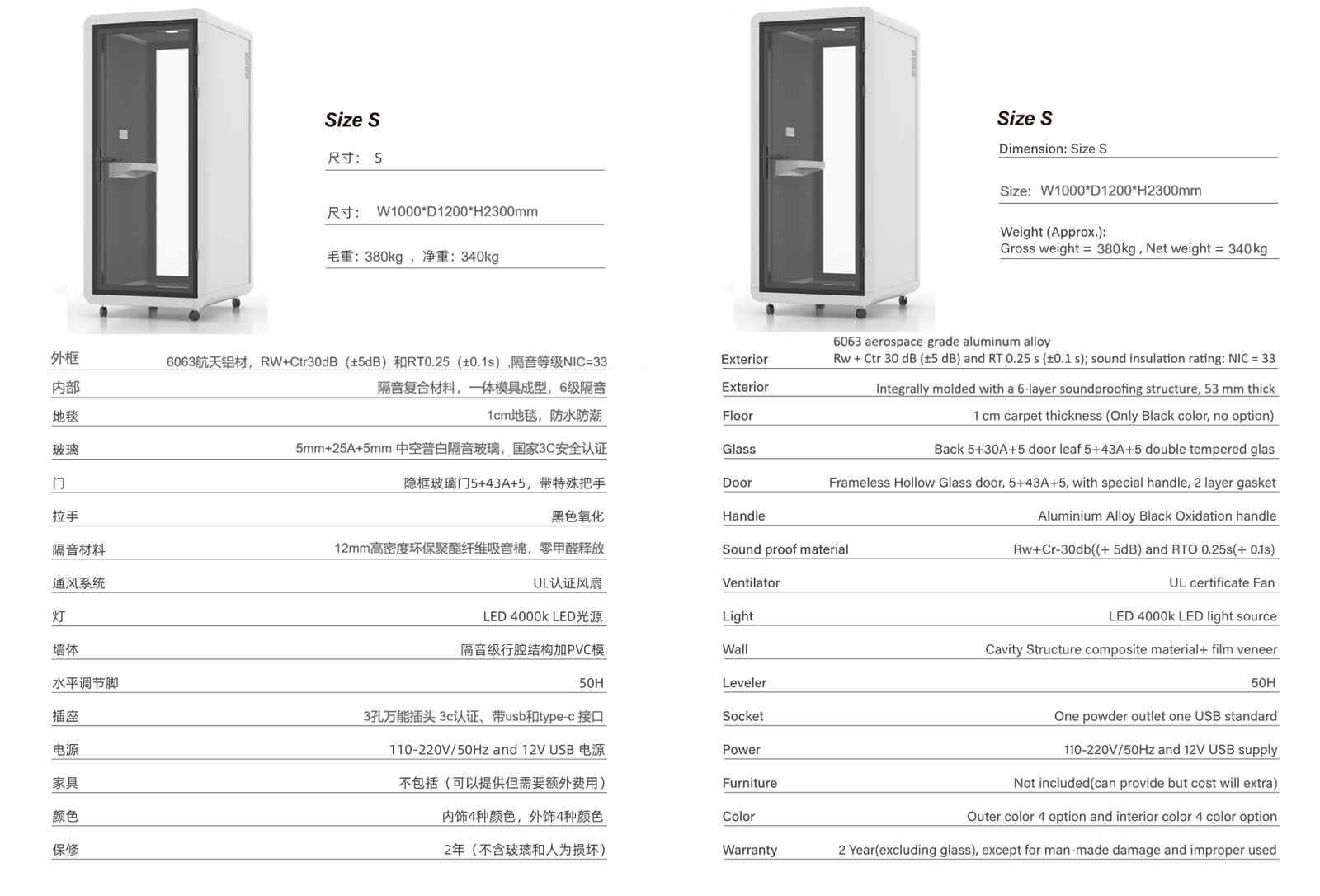

Technical Specification
Engineering detail, organised for faster review.
Four technical chapters bring construction, interior, systems and environmental requirements into one clear reference.
01 / Acoustic + Structure
Performance and structural shell
| Sound insulation performance | Design values Rw + Ctr 30 dB (±5 dB) and RT 0.25 s (±0.1 s); sound insulation rating NIC = 33. |
|---|---|
| Cabin frame | 6063 aerospace-grade aluminium alloy on all sides, with a 3–5 mm wall thickness and epoxy-polyester powder electrostatic coating. |
| Exterior panels | 1.0 mm steel sheet with high-quality epoxy-polyester powder electrostatic coating. |
| Interior acoustic body | Integrally moulded 6-layer soundproofing structure, 53 mm thick, with an insulation cavity and high-polymer composite acoustic panels. |
| Acoustic design | Sound insulation, sound absorption and cavity-structured materials cover low, mid and high frequencies with no acoustic blind spots. |
02 / Interior + Access
Surfaces, glazing and door system
| Glass | 5 mm + 25A + 5 mm insulated clear acoustic glass, specified with CCC / 3C safety compliance. |
|---|---|
| Interior surface | 12 mm high-density polyester-fibre acoustic absorption panels with zero formaldehyde emission; tested to US EPA 5021A:2014, ISO 17226-1:2021 and GB18580-2001. |
| Flooring | 10 mm eco-friendly, flame-retardant nylon carpet compliant with EN 13501-1:2018. |
| Door + handle | Hollow laminated clear acoustic glass door with an aluminium frame and concealed-frame glass leaf; aluminium-alloy black oxidation handle. |
03 / Air + Light + Power
Integrated interior systems
| Silent fan | CE-certified fan: DC 12V / 1A input, 116.6 CFM airflow, 1050 RPM, 22.13 dB(A), Ø250 × H30 mm. |
|---|---|
| Fresh-air cycle | Optional intelligent sensor-controlled exhaust function, configured to run for 5 minutes every 30 minutes.Optional · not included as standard |
| LED lighting | 6000K LED light source with high-efficiency chips and optical design, delivering 80–110 lm/W. |
| Power + charging | 3-pin universal socket module with 3C certification, USB and Type-C ports; 110–220V / 50Hz and 12V USB supply. |
04 / Environment + Use
Environmental performance and warranty
| Environmental compliance | Materials are specified for VOC / RoHS indoor air-quality compliance. |
|---|---|
| Eco-friendly design | The structure balances acoustic performance and mechanical strength for long service life. Acoustic materials are flame-retardant, non-toxic, odour-free, moisture-proof and mildew-resistant, with zero formaldehyde emission. |
| Warranty | 2 years excluding glass, man-made damage and damage caused by improper use. |
Packing + Delivery
Packing and logistics information.
S packing data is provided for project planning. Final packing and loading arrangements are confirmed with the quotation and order.
Package count1
Packing size2160 × 1210 × 720 mm
CBM1.881792 m³
Gross weight380 kg
Net weight340 kg
20FT14 units
40HQ40 units
Container quantities are planning references. Final order quantities, packing and loading plans are confirmed for each project.
