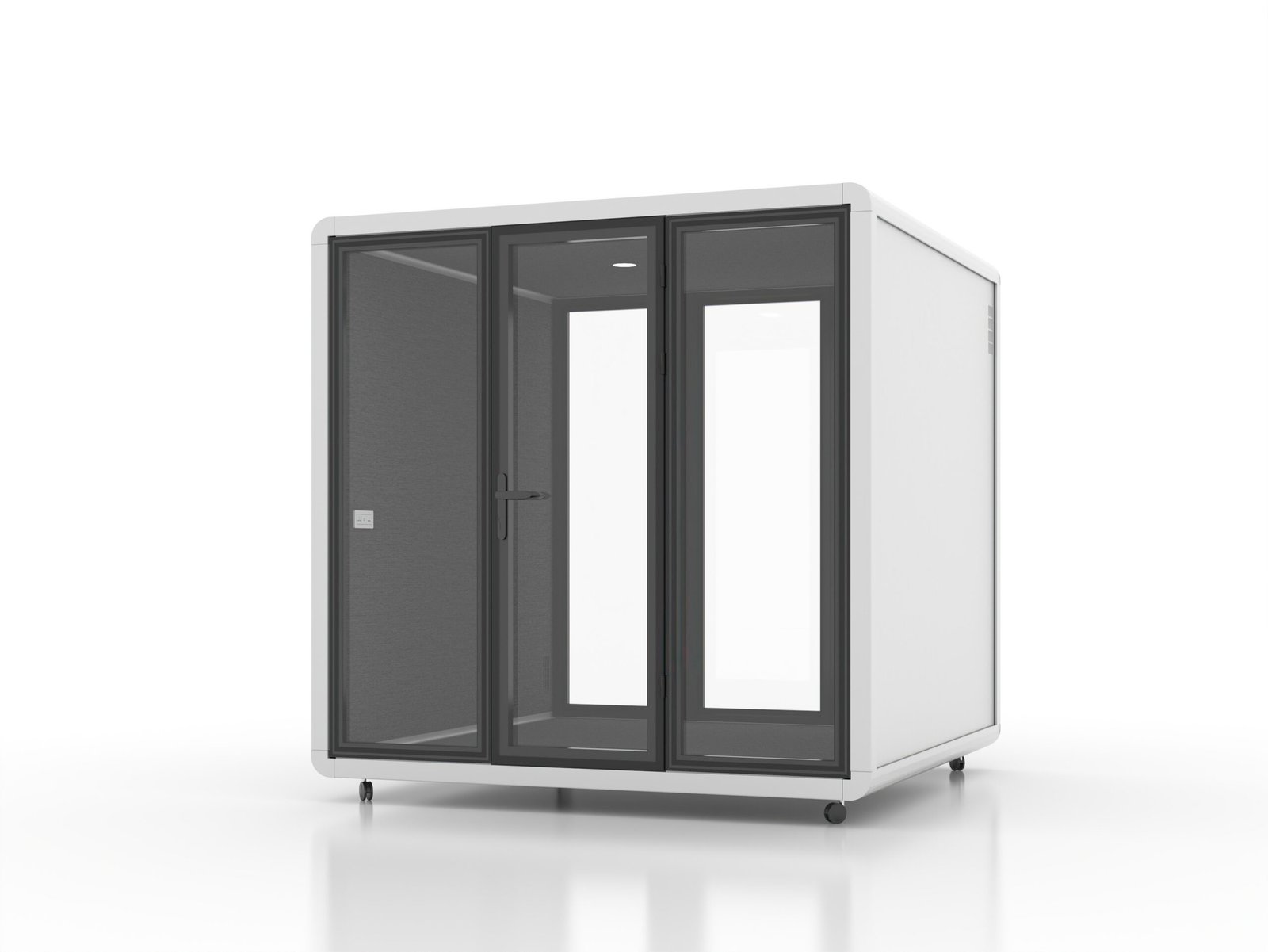

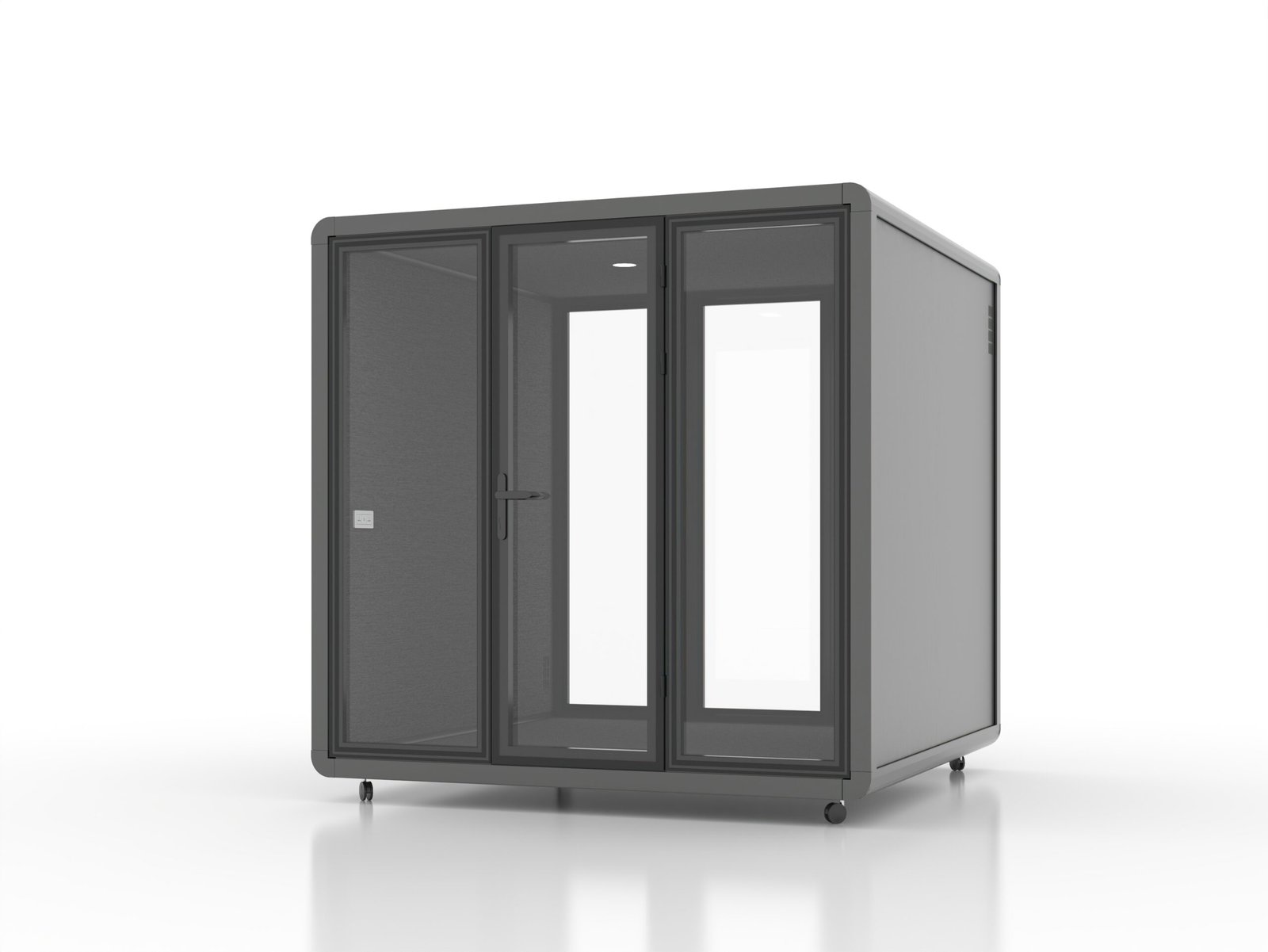

XL-six person booth

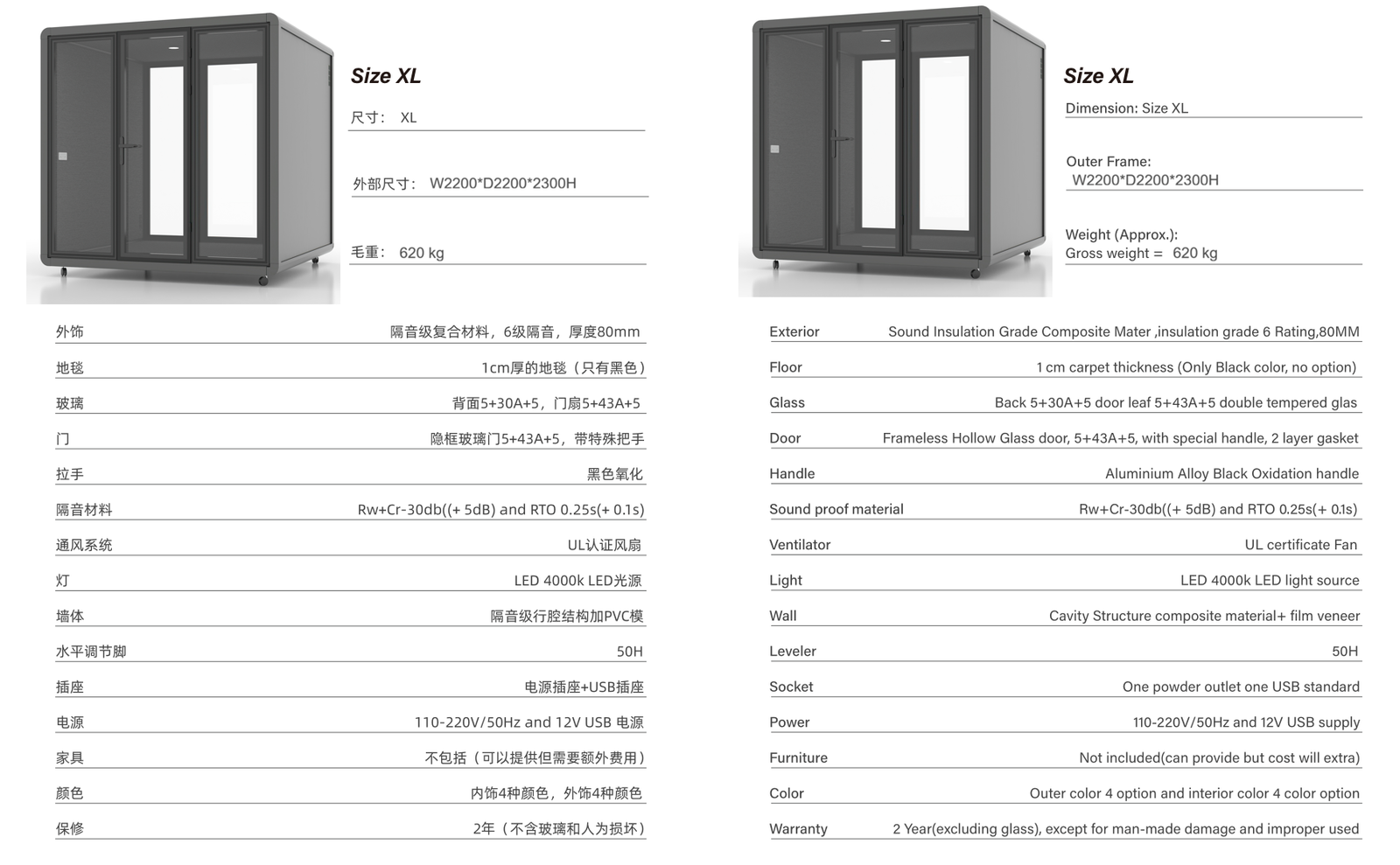

Here is a technical specifications:

1. Acoustic Performance
   Designed acoustic performance: Rw + Ctr 30 dB (±5 dB)and RT 0.25 s (±0.1 s); sound insulation rating: NIC = 33.
2. Booth Frame Material
   The acoustic booth frame is constructed with 6063 aerospace-grade aluminum alloyon all sides, with a wall thickness of 3–5 mm. The surface is treated with high-quality epoxy-polyester powder electrostatic coating, making it environmentally friendly, non-toxic, and odor-free.
3. Exterior & Interior Panel Materials

1. Exterior Panel:Made of 0 mm steel sheet, with the surface finished in high-quality epoxy-polyester powder electrostatic coating.
2. Interior Cabin:Integrally molded structure with Class 6 sound insulation, 53 mm thickness, and a sound-insulating cavity structure, using specially engineered polymer composite acoustic insulation panels for professional soundproofing applications.

Advantages of the Polymer Composite Acoustic Panel:
A. High Internal Damping – As a viscoelastic material, its molecular structure effectively converts the mechanical energy of sound waves into minute heat energy and dissipates it.

1. Uniform & Stable Density– Unlike wood fiber boards with possible density inconsistencies, premium composite boards have uniform density, ensuring stable acoustic impedance and preventing sound bridges and leakage points caused by density differences.
2. Waterproof & Moisture-Resistant– Completely non-absorbent (water absorption rate <0.1%), fundamentally preventing swelling, deformation, mold growth, and performance degradation caused by moisture in wood or gypsum materials.
3. Corrosion & Aging Resistance– Highly resistant to common acids, alkalis, salts, and cleaning agents. It is not susceptible to insect damage or corrosion, offering a much longer service life than conventional materials and minimal maintenance costs.
4. Excellent Flame Retardancy– Premium composite materials are inherently self-extinguishing when removed from flame. Through formula modification, they can easily achieve B1 flame-retardant rating, adding critical safety for enclosed acoustic spaces.
5. Eco-Friendly & Controllable– Modern environmentally friendly composite formulations can achieve heavy-metal-free, low VOC, and zero formaldehyde emission, ensuring indoor air quality and occupant health while meeting stringent green building standards.
6. Outstanding Sound Insulation & Noise Reduction– Through composite structural design combining a high-density composite core layer and porous sound-absorbing layer, it delivers both Mass Lawand damping vibration reduction effects, with excellent airborne sound insulation (Rw), especially effective against troublesome mid- and low-frequency noise.
7. Seamless Sealing– Integrated molding and precision snap-fit / tongue-and-groove design ensure tight panel connections, minimizing sound bridges and maintaining overall acoustic integrity.
8. Pre-Integrated Design– Pre-reserved cable channels allow concealed wiring and convenient future maintenance, improving aesthetics and functionality.
   4. Glass Material
      5 mm + 25A + 5 mm insulated clear soundproof glass, certified with China Compulsory Certification (CCC / 3C)for safety.
   5. Interior Finish
      12 mm high-density eco-friendly polyester fiber acoustic panels, with zero formaldehyde emission, tested according to US EPA 5021A:2014 / ISO 17226-1:2021 / GB18580-2001
   6. Flooring Material
      10 mm eco-friendly / flame-retardant nylon carpet, compliant with EN 13501-1:2018.

Door System Configuration
Hollow laminated clear soundproof glass door with aluminum alloy frame and concealed-frame glass door leaf.

9. Sound Insulation & Noise Reduction– Frameless single-layer glass is easily affected by sound vibration and offers minimal sound insulation. The high-strength aluminum frame secures the glass with precision slots, forming a stable double-layer soundproof structure and significantly reducing noise transmission.
11. Excellent Sealing & Energy Efficiency– Traditional frameless glass relies on simple adhesion and may deform over time or with temperature changes, causing air and light leakage. The framed design, combined with specialized EPDM sealing strips, creates an airtight sealing system.
13. Structural Stability & Safety– The durability of the aluminum frame enhances both safety and longevity. It is corrosion-resistant, moisture-resistant, and deformation-resistant, ensuring long-term structural stability.
15. Environmental Certification
    Complies with VOCand RoHS indoor air quality standards.
16. LED Lighting
    6000K LED lighting, combined with high-efficiency LED sources and optical design, delivering luminous efficacy of 80–110 lm/W.
17. Silent Fan with International CE Certification
    Significantly reduces operating noise.

Specifications:

• Input Voltage: DC 12V / 1A
• Airflow: 6 CFM
• Speed: 1050 RPM
• Noise Level: 13 dB(A)
• Dimensions: Ø250 mm × H30 mm

1. Fresh Air System
   Intelligent sensor-controlled exhaust system with an optional automatic ventilation cycle: runs for 5 minutes every 30 minutes. (Optional; not included in standard version.)
2. Universal Power Module
   3-pin universal socketwith CCC (3C) certification, integrated with USB and Type-C
3. Acoustic Engineering Design
   Combines sound insulation + sound absorption acoustic structure + cavity material structure, covering the full frequency range from low to high frequencies with no acoustic blind spots.
4. Eco-Friendly Design
   All acoustic materials comply with flame-retardantand environmental protection standards. The structure balances acoustic performance and mechanical strength, ensuring long service life, zero formaldehyde emission, non-toxicity, odorlessness, and resistance to moisture and mold.
5. Movable Design
   Heavy-duty casters are installed at the bottom of the booth for easy relocation according to space requirements.
6. Installation Method
   Adopts a “standardized modular disassembly + quick assembly” The acoustic booth can be disassembled into independent standardized units such as wall modules, ceiling modules, and door modules for easy installation and repeated reuse.
7. Customized Adaptability
   Based on a standard modular design, the booth can be infinitely expandableaccording to application scenarios, meeting diverse space requirements and varying soundproofing needs.
